SHINYO C Led flood light Al-Alloy Die-Casting Lamp 36W CREE XPE2 LED Outdoor Lighting
FEATURE:
1. Aluminum alloy die-casting lamp body, surface outdoor powder electrostatic spraying.Finless housing, compact design, dust-proof.
2. Built-in anti-glare cover, excellent glare control, adjustable projection angle +1-90°.
3. Aluminum A7001 forging radiator to ensure sufficient heat dissipation area, excellent thermal management.
4. Simple structure, reliable technology, protection grade IP66.
5. Inductive lightning electrostatic (ESD) protection, in line with LEVEL4 standard.Waterproof light-transmitting valve to prevent condensation of the lamp cavity, balance internal and external pressure.
SPECIFICATIONS
| Items | SHINYO C | |
| Model: | HEM-FL-SYC-36W | HEM-FL-SYC-36W(RGBW) |
| Light distribution: | 7.5°/10°/25°/45°/60° | 15°/30°/45°/60° |
| LED brand: | CREE XPE2 18PCS | CREE XPE2/CREE RGBW4 IN 1 18PCS |
| Nominal LED power: | 36W-40W | 36W-45W |
| Input voltage: | DC24V/AC100V-265V | DC24V/AC100V-265V |
| Colour temperature: | 2700K- 6500K | RGBW/RGBA |
| Control: | on/off 0-10v;DALI;Bluetooth | DMX/RDM |
| Impact protection: | IK08 | |
| Ingress protection: | IP66 | |
| Driver surge protection: | 10/6 KV | |
| Power factor: | > 0.95 | |
| Operation temperature: | -40° ~ + 50° | |
| Glass/Diffffusor: | Tempered safety glass | |
| Housing: | Corrosion resistant die-cast aluminum housing | |
| Lifetime: | L90B50>60, 000; LB8050>60, 000 | |
| Finishing: | Silver grey/ Dark grey /Black & optional RAL color | |
| Through wiring: | Single cable entry | 2 cables entry |
| Protection: | overheating protection | |
| Humidity range: | ≤95% | |
| Packing: | 10pcs/ctn | |

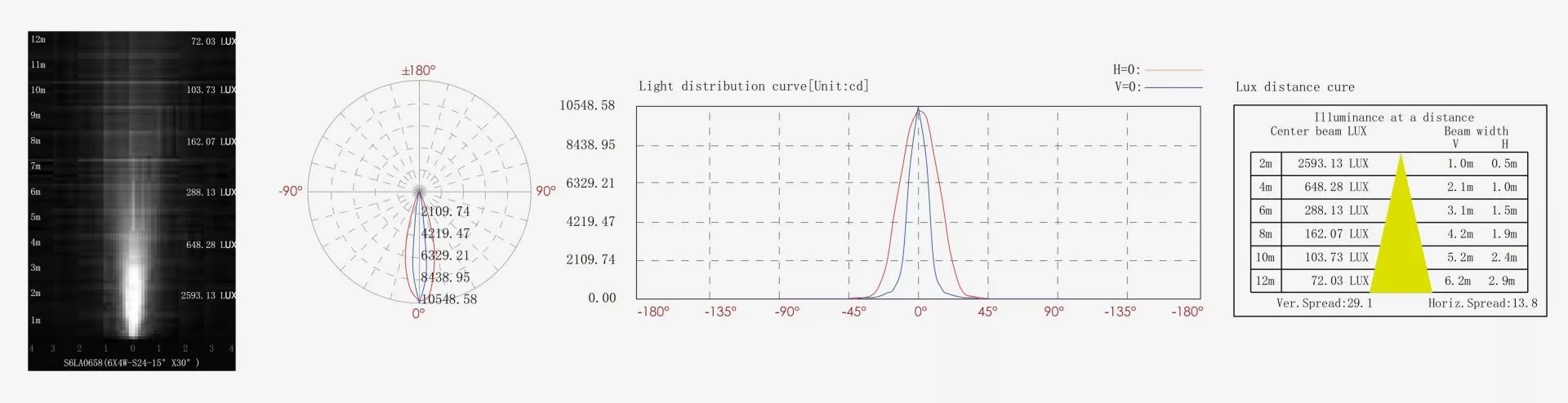

PHOTOMETRIC CURVES
WIRING DIAGRAM
OPTIONAL SPARE PARTS
Download (2022 OUTDOOR LIGHTING)
